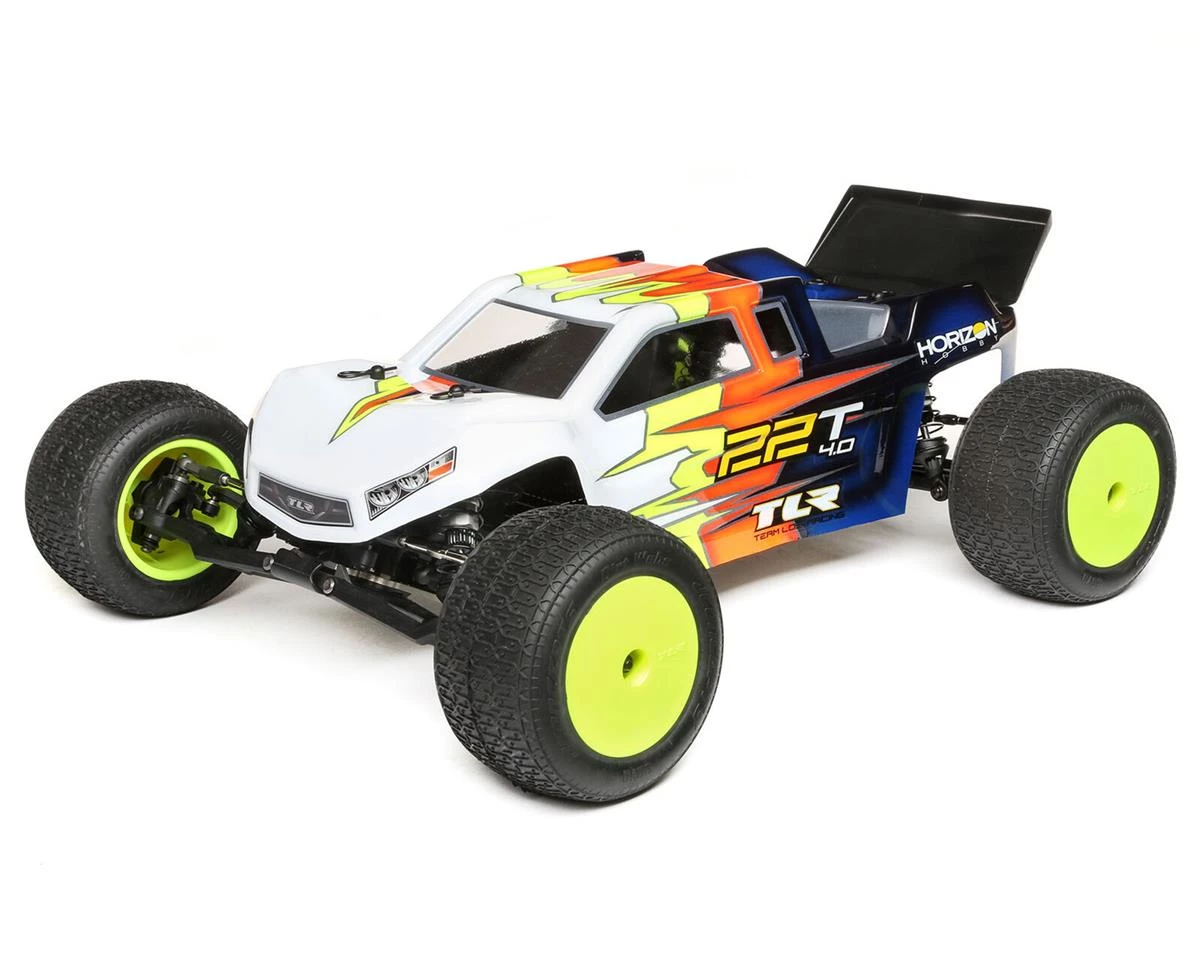

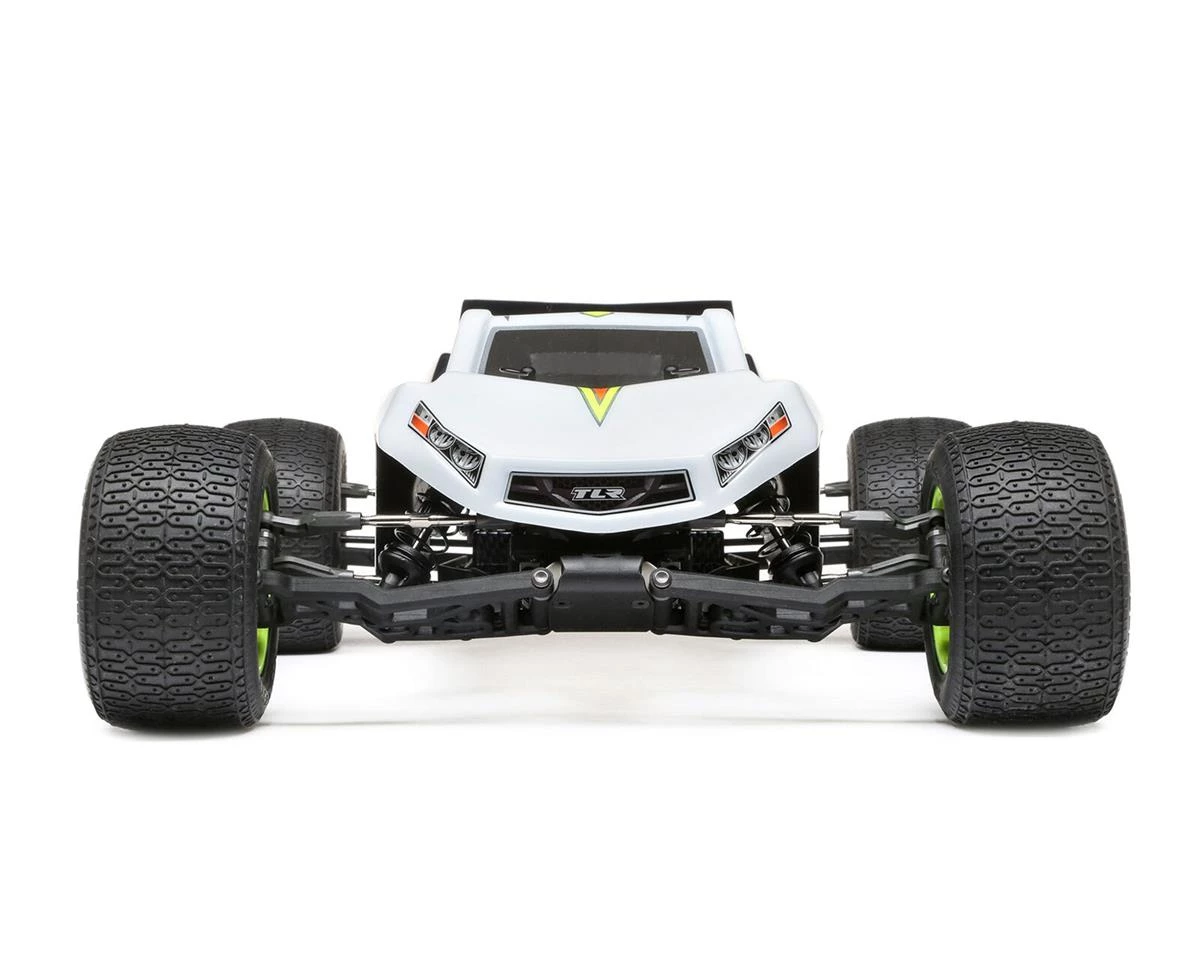

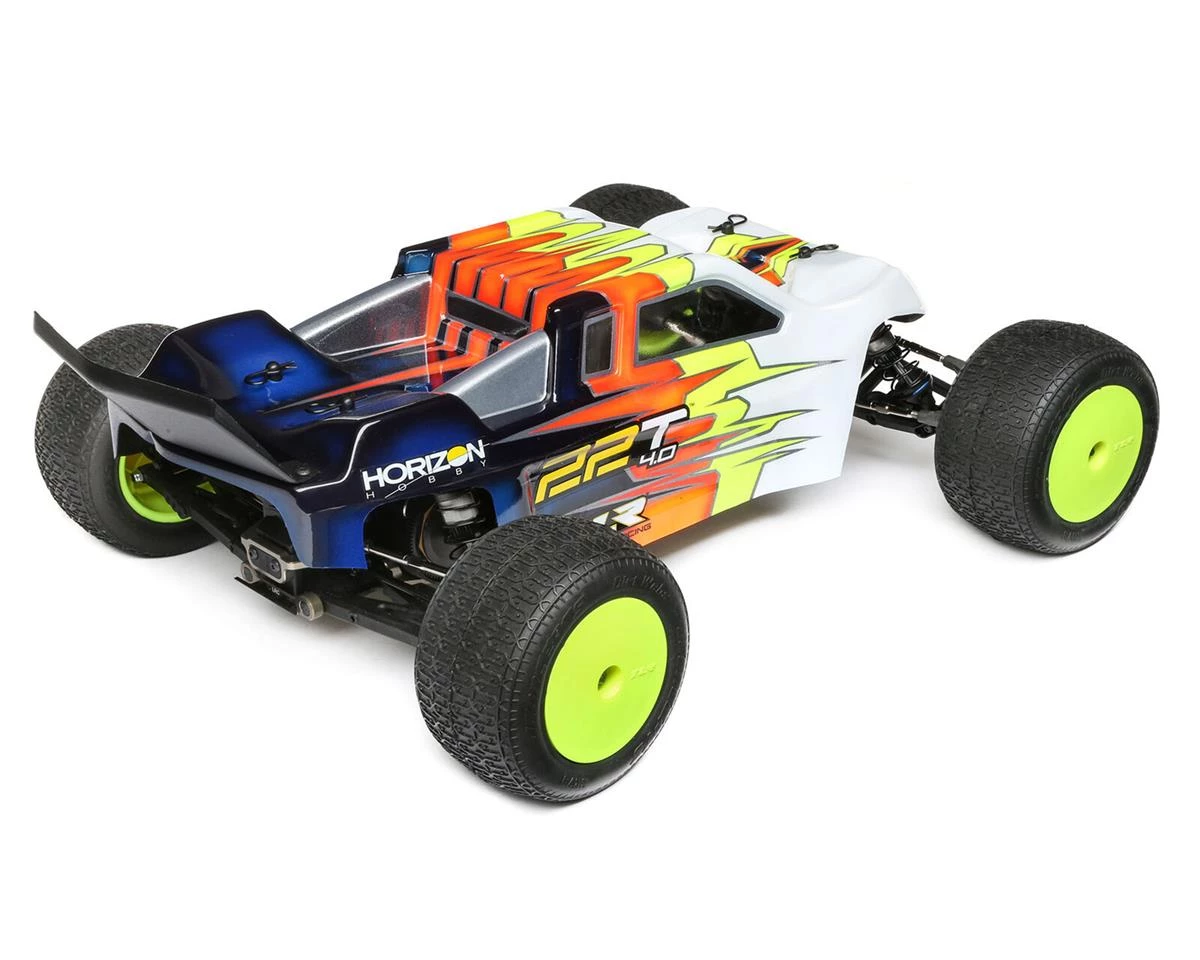

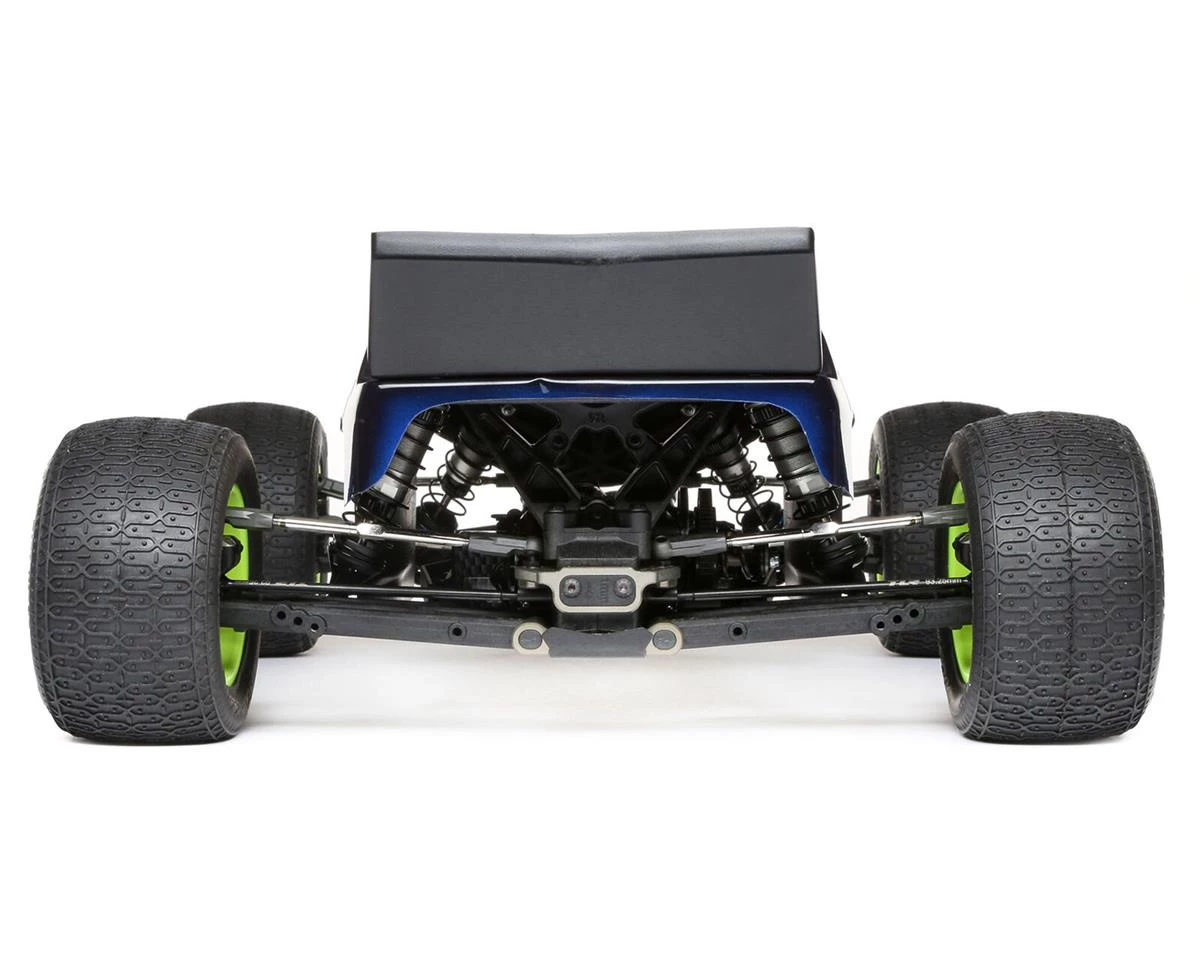

Team Losi Racing 22T 4.0 1/10 2WD Electric Stadium Truck Kit

The TLR 22T 4.0 1/10 2WD Electric Stadium Truck Kit takes the competition proven 22T 3.0, and gives it the advanced mid-motor laydown transmission treatment. With the wider track width and the relatively shorter chassis of the truck class, TLR engineers and the race team demanded higher development of the 22 platform.

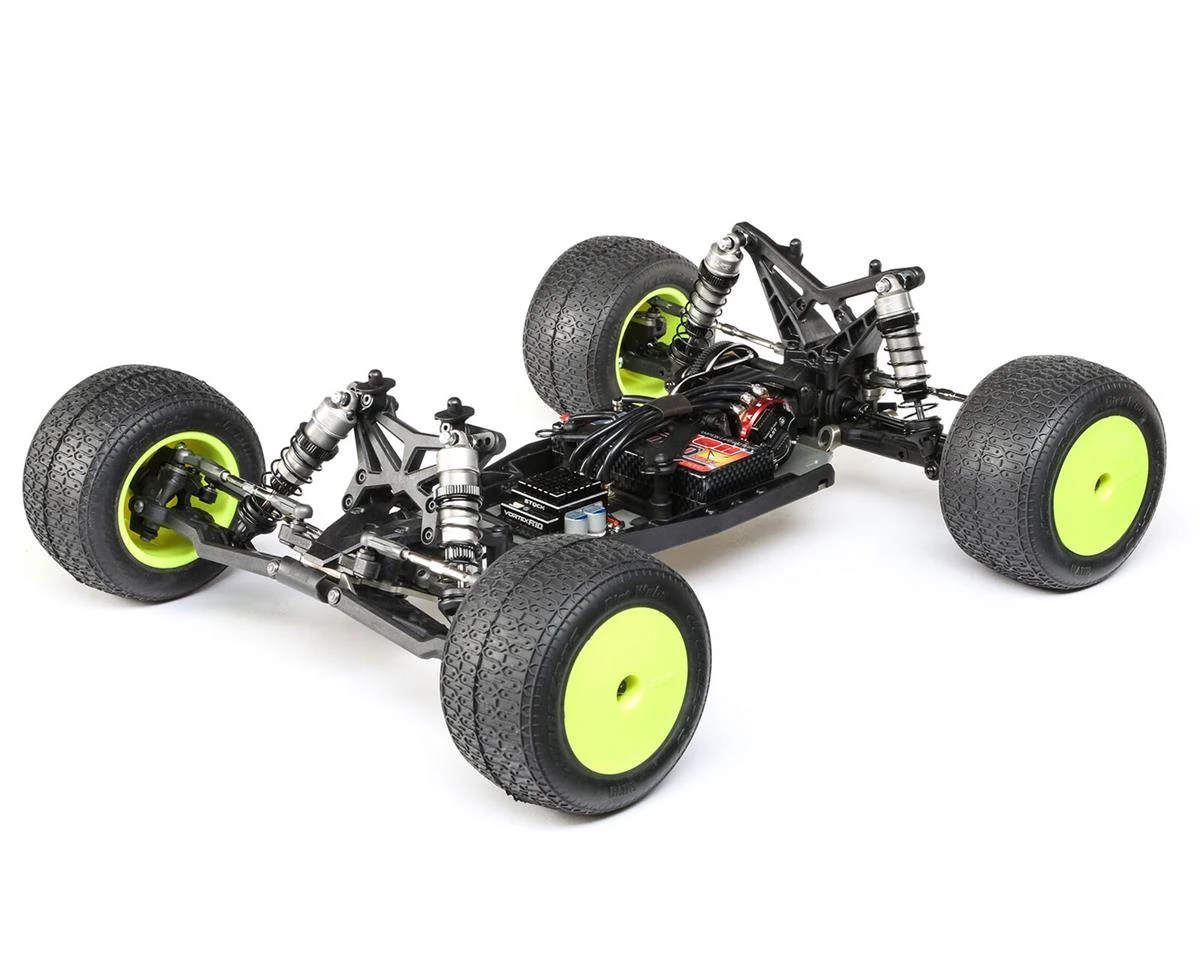

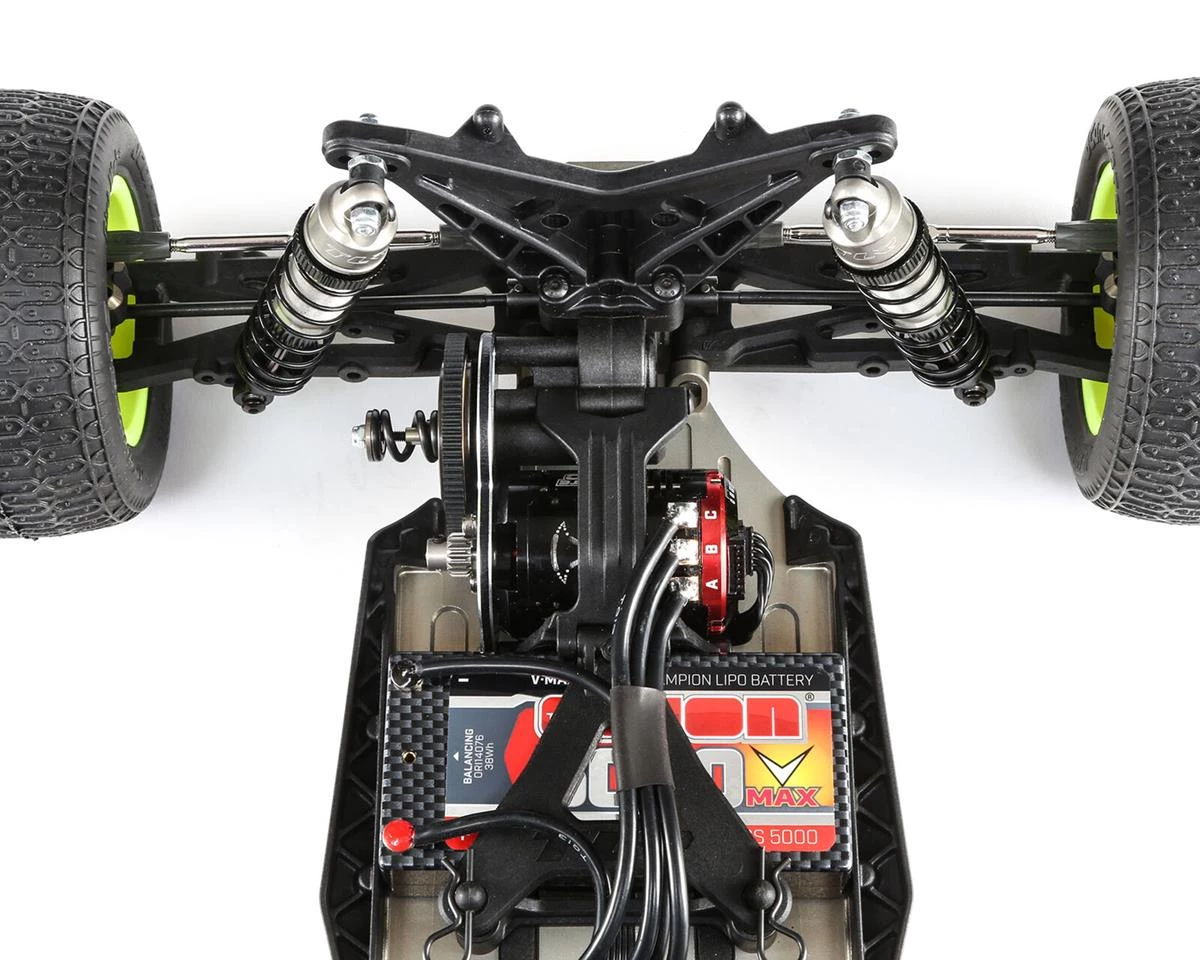

The laydown transmission moves the motor forward to a central motor location. This provides a chassis that drives much flatter, more consistent and corners quicker on higher grip surfaces. Still fitting a brick pack, saddle pack, or a shorty pack mounted across the chassis, drivers can maximize performance with best weight bias for all surfaces. In short, we’ve taken the race winning 22T 3.0 and added the “laydown” setup to maximize the performance.

Features:

• Based on the Championship-Winning 22T 3.0 Stadium Truck

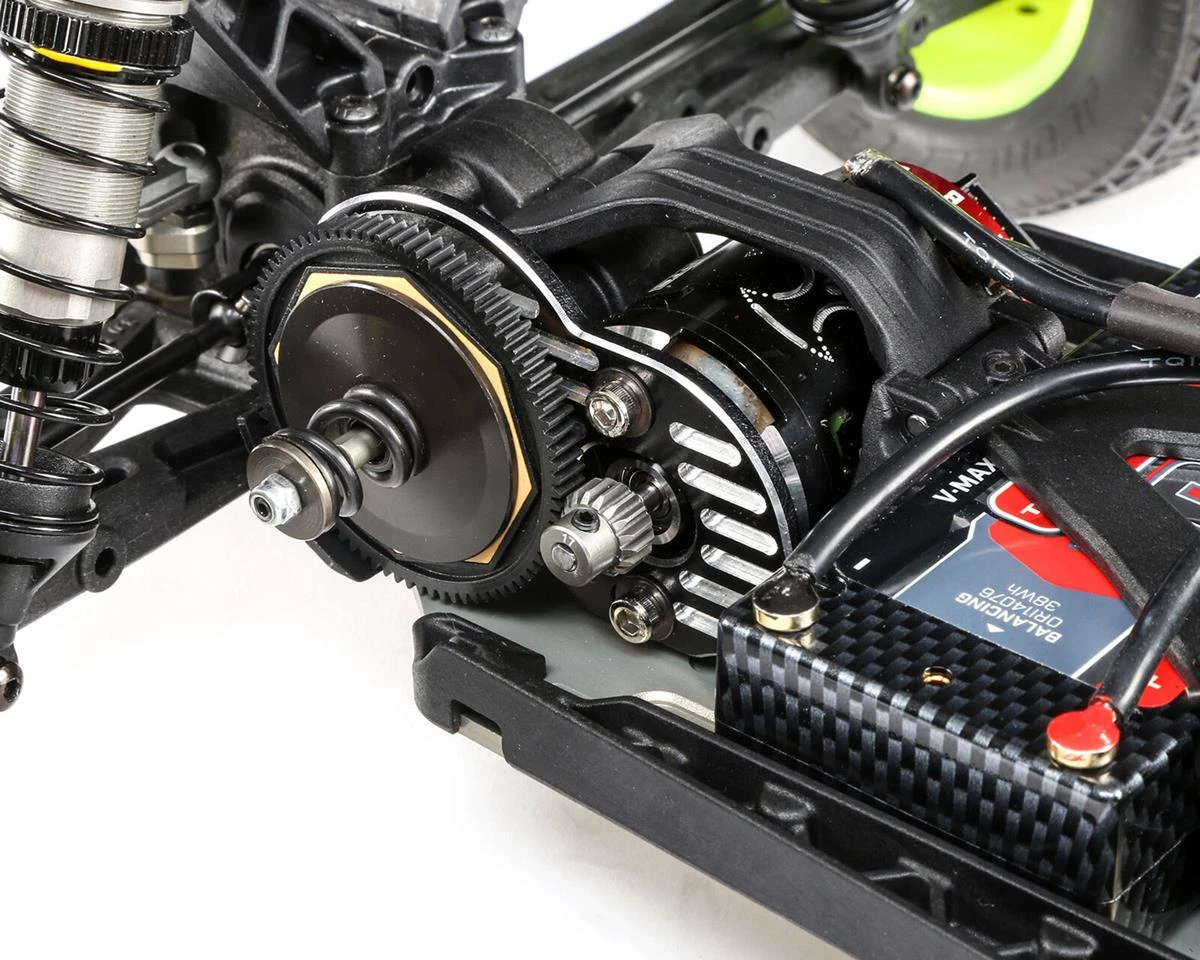

• Race-Proven, Mid-Motor Laydown Transmission
• Option and Tuning Parts Included
• Clear 22T 4.0 Polycarbonate Body
• More Durable Aluminum Plate Rear Hub

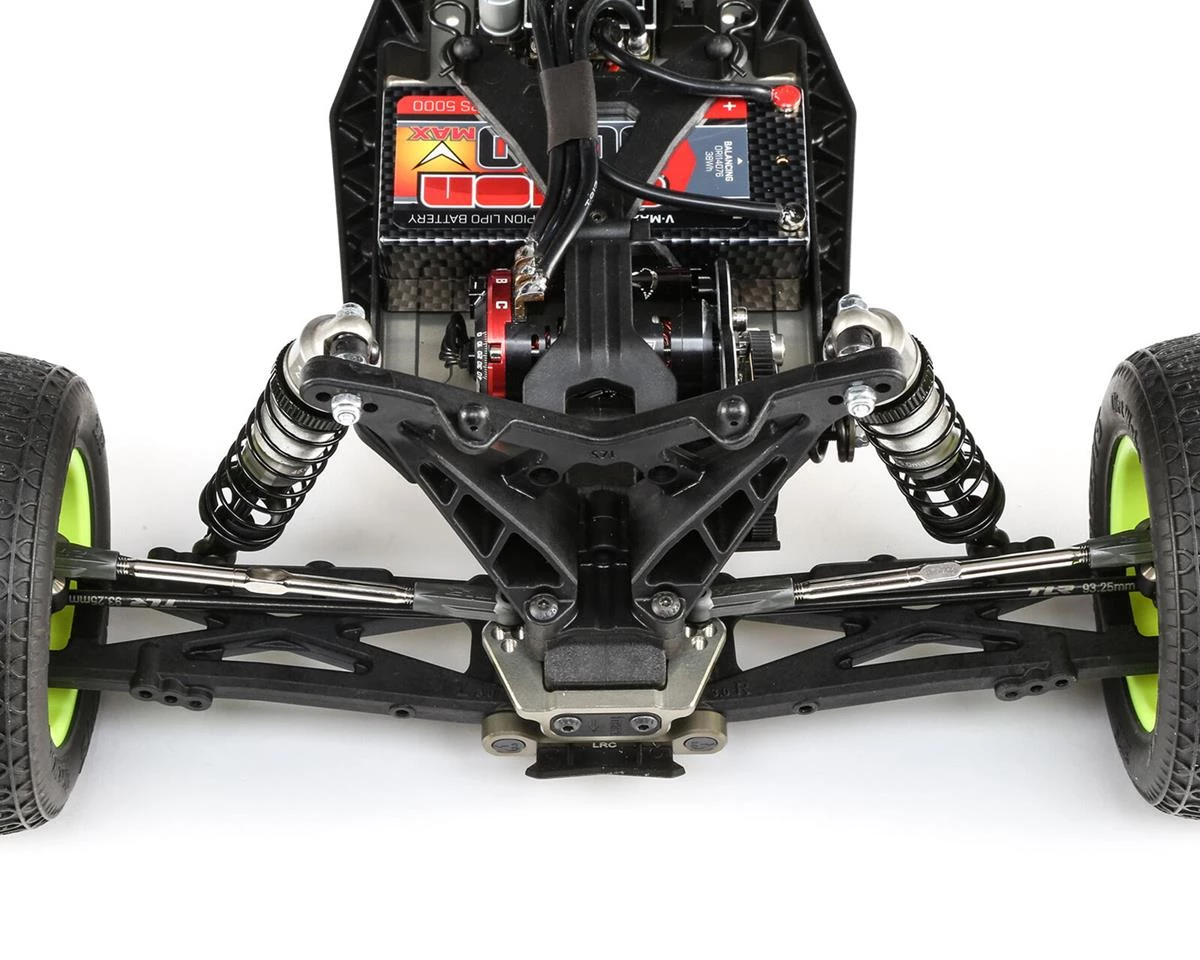

• Laydown Rear Shock Mounting Provides More Tuning Options
• Easy Ballast Tuning Options to Compete with Changing Track Conditions
• State-of-the-Art GenII 12mm Big Bore Shocks
• Lightweight 7075-T6 Aluminum Chassis
• Fully Updated Ball Differential

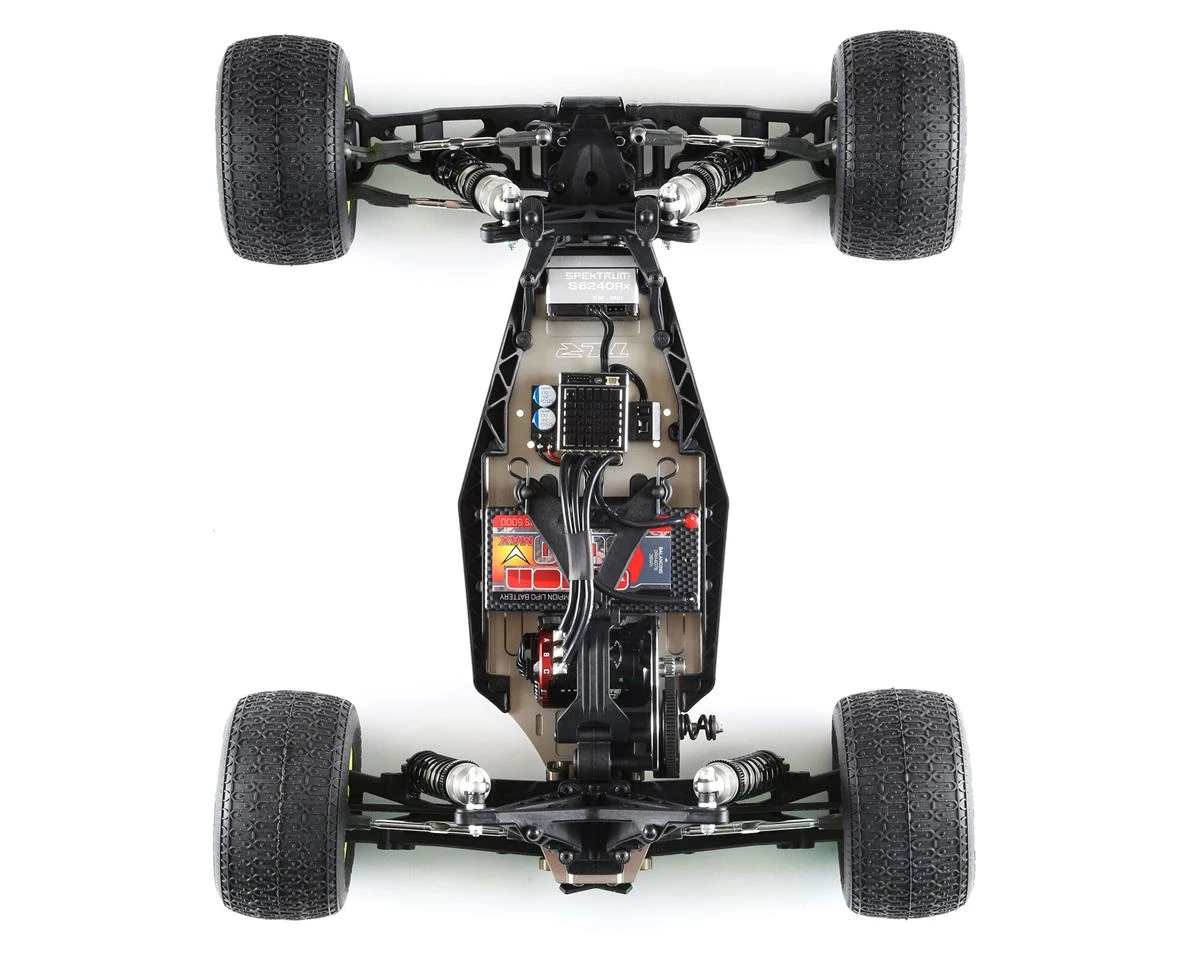

• Transverse Battery Mounting for the Perfect Balance
• Adjustable Toe and Anti-Squat Capability
• Long-lasting, Heavy Duty Slipper (HDS) pads

Specifications:
Type: 2WD Stadium Truck
Scale: 1/10
Length: 13.9 in (354mm) without Body/Wheels
Width: 12.7 in (322mm)
Height: 5.65 in (143mm)
Wheelbase: 11.4 in (290.5mm)
Chassis: 2.5mm 7075-T6 Aluminum
Suspension: Lower A-Arm, Upper Adjustable Link
Drivetrain: 2WD
Motor or Engine: 540 size Sold Separately
Speed Control: Sold Separately
Radio: Sold Separately
Servos: Sold Separately
Batteries: Sold Separately
Charger: Sold Separately
Gear Pitch: 48P
Wheel Size: 2.20 in (56mm) x 1.90 in (48mm)
Kit/RTR: Kit
Shock Type: 12mm Big Bore, Oil Filled
Body: 22T 4.0, Clear Polycarbonate
Ball Bearings: Full Rubber Sealed Ball Bearings
Experience Level: Advanced
Recommended Environment: Outdoor
Assembly Time: 3-5 Hours
Is Assembly Required: Yes

Needed To Complete:

• Motor
• Electronic Speed Control
• Servo
• Tires
• Radio System
• 48 Pitch Pinion Gear
• Charger
• Battery
• Paint
• Tools
